Learn about our comprehensive antibody validation methods to ensure monospecificity.  Antibody Validation>>

CD3D / T Cell Receptor delta Antibody [CD3D/8898]

In Stock
Catalog Number Formulation Size Price
915-MSM1-P0
Purified Ab with BSA and Azide at 200ug/ml
20ug
$229.00
915-MSM1-P1
Purified Ab with BSA and Azide at 200ug/ml
100ug
$519.00
915-MSM1-P1ABX
Purified Ab WITHOUT BSA at 1.0mg/ml
100ug
$519.00
Flat Rate Domestic: $60 | Orders outside the US - Contact Us for Order Information | Ships next business day

Applications & Dilutions

Applications Tested Dillution Protocol Note
Immunohistochemistry (IHC)
1-2ug/ml
30 min at RT. Staining of formalin-fixed tissues requires heating tissue sections in 10mM Tris with 1mM EDTA, pH 9.0, for 45 min at 95°C followed by cooling at RT for 20 minutes

Summary

The T cell antigen receptor (TCR) recognizes foreign antigens and translates such recognition events into intracellular signals that elicit a change in the cell from a dormant to an activated state. Much of this signaling process can be attributed to a multisubunit complex of proteins that associates directly with the TCR. This complex has been designated CD3 (cluster of differentiation 3). It is composed of five invariant polypeptide chains that associate to form three dimers: a heterodimer of g and e chains (ge), a heterodimer of d and e chains (de) and a homodimer of two z chains (zz) or a heterodimer of z and h chains (zh). The z and h chains are encoded by the same gene but differ in their carboxyl-terminal ends due to an alternative splicing event. The g, e and d chains each contain a single copy of a conserved immunoreceptor tyrosine-based activation motif (ITAM). In contrast, the z chain contains three consecutive copies of the same motif. Phosphorylated ITAMs act as docking sites for protein kinases such as ZAP-70 and Syk and are also capable of regulating their kinase activity. The crystal structure of the ZAP-70 SH2 domains bound to the z chain ITAMs has been solved.

Product Properties & Targets

Antibody Type
Host
Mouse
Applications
Species Reactivity
Isotype / Light Chain
IgG1 / Kappa
Cellular Localization
Membrane. External side of plasma membrane.
Gene Name
Positive Control

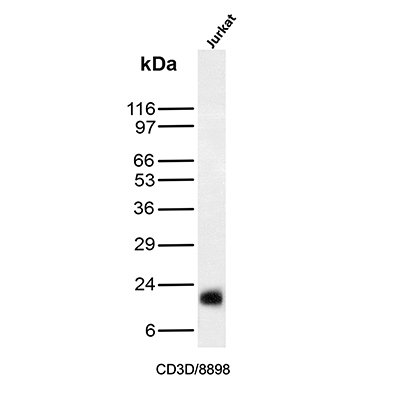

Human peripheral blood. Jurkat cells. Tonsil or lymph node.
Immunogen
Recombinant fragment (around aa1-171) of human CD3D protein (exact sequence is proprietary)
Alternate Names
T-cell surface glycoprotein CD3 delta chain, T-cell receptor T3 delta chain, CD3 antigen delta subunit; CD3 delta; CD3d antigen delta polypeptide (TiT3 complex); CD3d molecule delta (CD3-TCR complex); IMD19; OKT3 delta chain; T-cell receptor T3 delta chain; T-cell surface glycoprotein CD3 delta chain; T3D

Database Links

Entrez Gene ID
915
SwissProt

Additional Information

Clone
CD3D/8898
Chromosome Location
11q23.3
Mol. Weight of Antigen
20kDa

Functions

  • Part of the TCR-CD3 complex present on T-lymphocyte cell surface that plays an essential role in adaptive immune response. When antigen presenting cells (APCs) activate T-cell receptor (TCR), TCR-mediated signals are transmitted across the cell membrane by the CD3 chains CD3D, CD3E, CD3G and CD3Z. All CD3 chains contain immunoreceptor tyrosine-based activation motifs (ITAMs) in their cytoplasmic domain. Upon TCR engagement, these motifs become phosphorylated by Src family protein tyrosine kinases LCK and FYN, resulting in the activation of downstream signaling pathways (PubMed:2470098). In addition of this role of signal transduction in T-cell activation, CD3D plays an essential role in thymocyte differentiation. Indeed, participates in correct intracellular TCR-CD3 complex assembly and surface expression. In absence of a functional TCR-CD3 complex, thymocytes are unable to differentiate properly. Interacts with CD4 and CD8 and thus serves to establish a functional link between the TCR and coreceptors CD4 and CD8, which is needed for activation and positive selection of CD4 or CD8 T-cells(PubMed:12215456).

Key References

  • Baeuerle, P.A., et al. 2019. Synthetic TRuC receptors engaging the complete T cell receptor for potent anti-tumor response. Nat. Commun. 10: 2087.

Storage & Stability

Antibody with azide - store at 2 to 8°C. Antibody without azide - store at -20 to -80°C.Antibody is stable for 24 months. Non-hazardous. No MSDS required.

Limitations

This antibody is available for research use only and is not approved for use in diagnosis.

Supplied as

200ug/ml of Ab purified from Bioreactor Concentrate by Protein A/G. Prepared in 10mM PBS with 0.05% BSA & 0.05% azide. Also available WITHOUT BSA & azide at 1.0mg/ml.

Warranty

There are no warranties, expressed or implied, which extend beyond this description. Company is not liable for any personal injury or economic loss resulting from this product.
