CD31 / PECAM-1 (Endothelial Cell Marker) Antibody [MSVA-031M]

Additional information

Catalog Number: 5175-MSM62
Gene:

Host:

Reactivity:

In Stock

Trial Size Available

Carrier-Free Available

download data sheet
In Stock
Catalog Number Formulation Size Price
5175-MSM62-P0
Purified Ab with BSA and Azide
20ug
$259.00
5175-MSM62-P1
Purified Ab with BSA and Azide
100ug
$559.00
Flat Rate Domestic: $95 | Orders outside the US - Contact Us for Order Information | Ships next business day

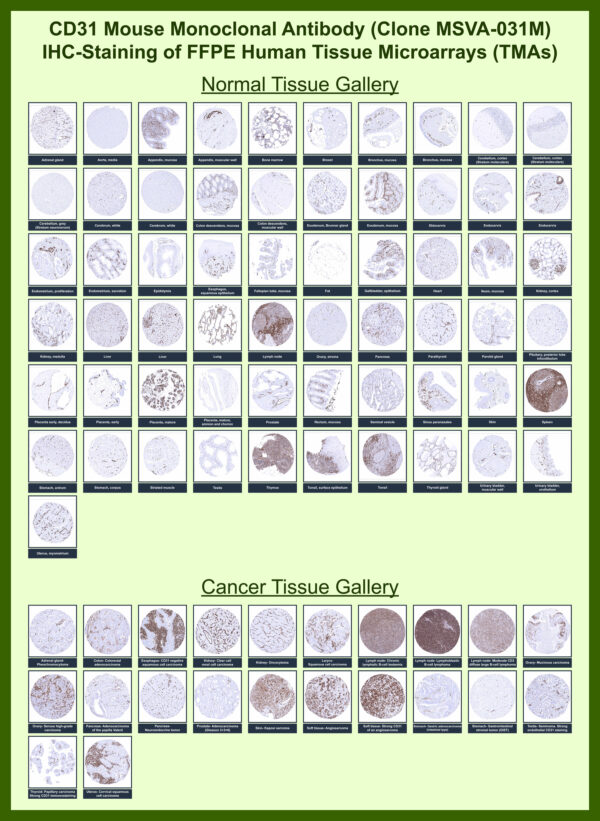

PECAM-1 Antibody in Numerous Tissues (IHC)

PECAM-1 Antibody in Numerous Tissues (IHC)

Platelet endothelial cell adhesion molecule Mouse Monoclonal Antibody (MSVA-031M) tested on many normal and cancer tissues. The immunohistochemistry staining in these tissues aligns with the expression data in Human Protein Atlas.

  • IHC
  • Documents
  • Applications & Dilutions
  • Product Properties
  • other information

Documents

Document Name
Datasheet Download Here
Material Safety Data Sheet Download Here

Applications & Dilutions

Applications Tested Dilutions Protocol Note
Immunohistochemistry (IHC) 1:100-1:200 IHC Protocol Manual Protocol: Freshly cut sections should be used (less than 10 days between cutting and staining). Heat-induced antigen retrieval for 5 minutes in an autoclave at 121°C in pH 7.8 Target Retrieval Solution buffer. Apply the antibody at a dilution of 1:150 at 37°C for 60 minutes. Visualization of bound antibody by the EnVision Kit (Dako, Agilent) according to the manufacturer’s directions.

Product Properties

Antibody Type
Mouse Monoclonals
Host
Mouse
Applications
Immunohistochemistry
Species Reactivity
Human
Clone
MSVA-031M
Isotype
IgG1
Light Chain
Kappa
Cellular Localization
Cell junction, Cell membrane, Membrane raft
Gene Name
PECAM-1
Positive Control
Liver: At least a weak to moderate staining of the majority of the hepatic sinusoidal endothelial cells should be seen.
Immunogen
Recombinant fragment (around aa 625-738) of human CD31 protein (exact sequence is proprietary)
Expression System
HEK293
Storage & Stability
Antibody with azide - store at 2 to 8 °C. Antibody without azide - store at -20 to -80 °C. Antibody is stable for 24 months. Non-hazardous. No MSDS required.
Supplied as
Ab produced in HEK293 cell mammalian-based expression system. Prepared in 10mM PBS with 0.05% BSA & 0.05% azide. Also available WITHOUT BSA & azide.
Limitations
This antibody is available for research use only and is not approved for use in diagnosis.

Related Antibodies

Formalin-fixed, paraffin-embedded human Renal Cell Carcinoma stained with KSP-Cadherin Recombinant Mouse Monoclonal Antibody (rCDH16/1071).
7
  • Flow
  • IHC
  • WB

Recombinant Ksp-Cadherin (Kidney-Specific Cadherin) / CDH16 Antibody

Additional information

Catalog Number: 1014-MSM4
Reactivity:

, , , ,

Gene:

Host:

Formalin-fixed, paraffin-embedded human Kidney stained with Occludin Mouse Monoclonal Antibody (OCLN/2183).
4
  • IHC
  • WB

Occludin (OCLN) (Tight Junctions Marker) Antibody

Additional information

Catalog Number: 100506658-MSM3
Reactivity:

Gene:

Host:

Formalin-fixed, paraffin-embedded human kidney stained with MICA Mouse Recombinant Monoclonal Antibody (MICA/4442). HIER: Tris/EDTA, pH9.0, 45min. 2°C: HRP-polymer, 30min. DAB, 5min.
5
  • IHC
  • WB

MICA Antibody

Additional information

Catalog Number: 100507436-MSM2
Reactivity:

, , , ,

Gene:

Host:

Formalin-fixed, paraffin-embedded human Renal Cell Carcinoma stained with Cadherin 16 Mouse Monoclonal Antibody (CDH16/2448).
3
  • ELISA
  • IHC

Ksp-Cadherin / CDH16 (Renal Cell Marker) Antibody

Additional information

Catalog Number: 1014-MSM6
Reactivity:

Gene:

Host:

Formalin-fixed, paraffin-embedded human Colon stained with Cadherin 17 / CDH17 Mouse Monoclonal Antibody (CDH17/2617).
3
  • IHC
  • WB

Cadherin 17 / LI Cadherin (Gastric Adenocarcinoma Marker) Antibody

Additional information

Catalog Number: 1015-MSM7
Reactivity:

Gene:

Host:

Formalin-fixed, paraffin-embedded human Colon stained with Cadherin 17 / CDH17 Mouse Monoclonal Antibody (CDH17/2616).
3
  • IHC
  • WB

Cadherin 17 / LI Cadherin (Gastric Adenocarcinoma Marker) Antibody

Additional information

Catalog Number: 1015-MSM6
Reactivity:

Gene:

Host:

Formalin-fixed, paraffin-embedded human Renal Cell Carcinoma stained with KSP-Cadherin Rabbit Recombinant Monoclonal Antibody (CDH16/1532R)
6
  • IHC
  • WB
  • Flow

Recombinant Ksp-Cadherin (Kidney-Specific Cadherin) / CDH16 Antibody

Additional information

Catalog Number: 1014-RBM2
Gene:

Host:

Reactivity:

Formalin-fixed, paraffin-embedded human heart stained with N-Cadherin Recombinant Rabbit Monoclonal Antibody (CDH2/3874R).
3
  • IHC
  • WB

Recombinant N-Cadherin / Cadherin-2 / CD325 (NCAD) Antibody

Additional information

Catalog Number: 1000-RBM5
Gene:

Host:

Reactivity:

, , ,

VIEW ALL ANTIBODIES

Other Information

Functions
  • Cell adhesion molecule which is required for leukocyte transendothelial migration (TEM) under most inflammatory conditions (PubMed:19342684, PubMed:17580308). Tyr-690 plays a critical role in TEM and is required for efficient trafficking of PECAM1 to and from the lateral border recycling compartment (LBRC) and is also essential for the LBRC membrane to be targeted around migrating leukocytes (PubMed:19342684). Trans-homophilic interaction may play a role in endothelial cell-cell adhesion via cell junctions (PubMed:27958302). Heterophilic interaction with CD177 plays a role in transendothelial migration of neutrophils (PubMed:17580308). Homophilic ligation of PECAM1 prevents macrophage-mediated phagocytosis of neighboring viable leukocytes by transmitting a detachment signal (PubMed:12110892). Promotes macrophage-mediated phagocytosis of apoptotic leukocytes by tethering them to the phagocytic cells; PECAM1-mediated detachment signal appears to be disabled in apoptotic leukocytes (PubMed:12110892). Modulates bradykinin receptor BDKRB2 activation (PubMed:18672896). Regulates bradykinin- and hyperosmotic shock-induced ERK1/2 activation in endothelial cells (PubMed:18672896). Induces susceptibility to atherosclerosis (By similarity).
  • Does not protect against apoptosis.
Key References
  • Gratzinger D et. al. Am J Clin Pathol 131:264-278 (2009).
PubMed Links
Warranty
There are no warranties, expressed or implied, which extend beyond this description. Company is not liable for any personal injury or economic loss resulting from this product.
Entrez Gene ID
5175
SwissProt
P16284
Chromosome Location
17q23.3
Mol. Weight of Antigen
~100kDa (endothelium) and ~130kDa (platelets)
Alternate Names
Platelet endothelial cell adhesion molecule, EndoCAM, GPIIA', PECA1, EndoCAM; PECA1; Platelet Endothelial Cell Adhesion Molecule 1; GPIIA'

Summary

CD31 (PECAM-1) is a transmembrane glycoprotein member of the immunoglobulin supergene family of adhesion molecules. CD31 is expressed by stem cells of the hematopoietic system and is primarily used to identify and concentrate these cells for experimental studies as well as for bone marrow transplantation. Anti-CD31 has shown to be highly specific and sensitive for vascular endothelial cells. Staining of nonvascular tumors (excluding hematopoietic neoplasms) is rare. CD31 MAb reacts with normal, benign, and malignant endothelial cells which make up blood vessel lining. The level of CD31 expression can help to determine the degree of tumor angiogenesis, and a high level of CD31 expression may imply a rapidly growing tumor and potentially a predictor of tumor recurrence.
